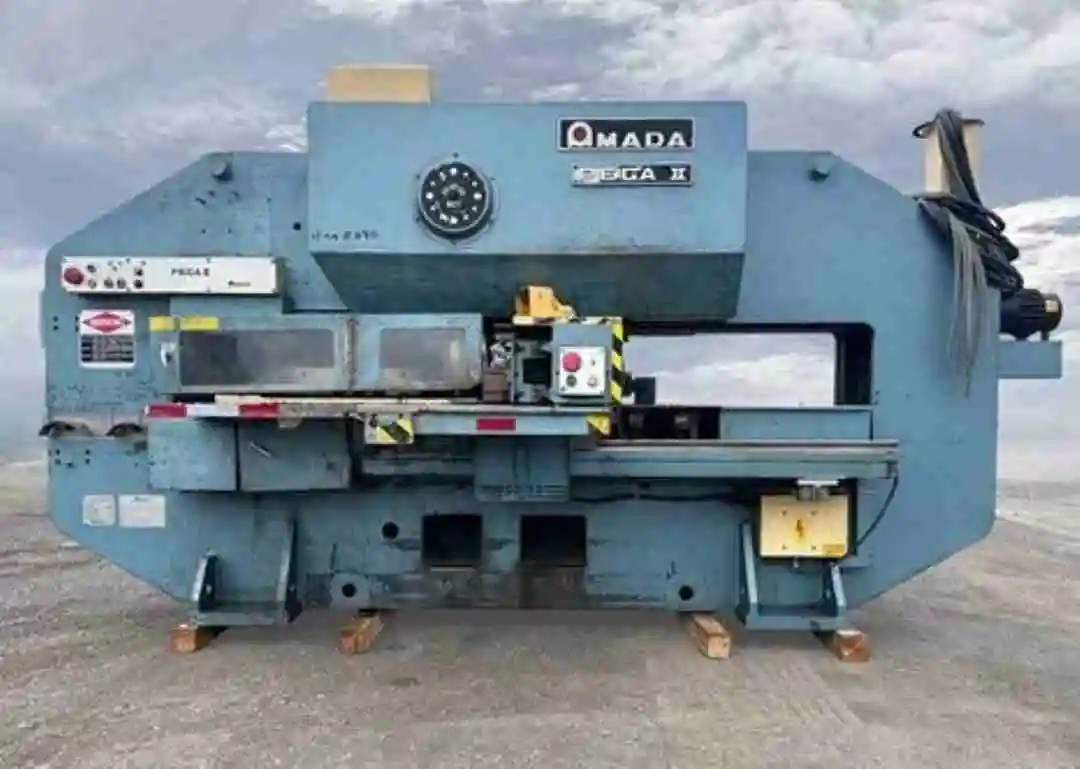

Amada Pega II Turret Punch Press Well-Maintained by Amada Service and Maintenance

Description

Taken out of production & moved to indoor storage, February 2024
Max sheet size: 40″ X 50″ (40″ X 100″ W/Repo)
Max punching capacity: 1/4″
Max hole size (10 ga.): 3.5″
Well-Maintained by Amada Service and Maintenance
Original Full Manuals
DELL Computer System with Monitor
Machine Type: Turret Punch
Capacity: 30 Tons
Max sheet size: 40″ X 50″ (40″ X 100″ W/Repo)
Max punching capacity: 1/4″
Max hole size (10 ga.): 3.5″
Max hole size (1/4″): 1.6″
Turret style: Thick Turret
Speed: 30 Rpm
Turret stations: 31 Stations; No Auto indexing
Auto-Lubing, Ball Transfer Table, 2 Clamps.
X and Y Motors 10 Years Old
New Brake was installed 5/2023
Weight: approx. 30,000 Lbs.
Measures: 14' 5" L x 7' 7" W x 90" H
Control unit, Weight: Approx. 750 lbs
Control unit, Measures: 43 ¾" L x 28 ¾" W x 73" H
